Factory standardized production
It is processed and manufactured by standard production technology, and the thickness of the side seal keel ≥0.6mm to ensure the overall quality of the product.
The company in the introduction of advanced high-tech purification board manufacturing technology based on customized production by customer standards, the company produces various types of purification boards that have high-temperature resistance, flame retardant sound absorption, shockproof, and insect proof, waterproof, moisture-proof, lightweight anti-corrosion, odorless and pollution-free and other characteristics.
It is processed and manufactured by standard production technology, and the thickness of the side seal keel ≥0.6mm to ensure the overall quality of the product.
It adopts a special poly for high-performance two-component purification plates Urethane filler glue, product bonding strength ≥0.1MPa, peeling performance ≥ 90%.
Recycled aluminum, steel and other materials, none radioactive, environmental health.
It is made of high-quality A-grade hydrophobic rock wool material, which has superior overall thermal insulation and fire performance.
The weight of each square meter is 10-15kg, which is equivalent to 1/30 of the brick wall, and the bending capacity ≥ 0.8KN//m².
It is connected by plugging and connecting the dovetail groove, which is convenient to install and effectively reduces costs.

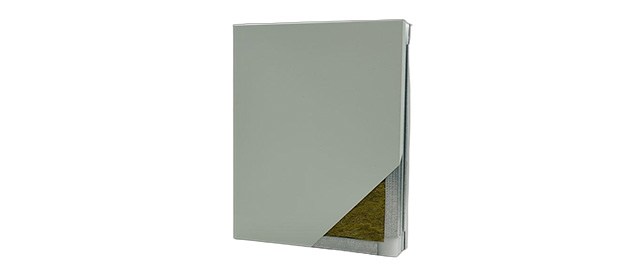

| Product Series | Manual Rockwool Purification Panel | Manual Glass Magnesia Rockwool Purification Panel | Manual Aluminum Honeycomb Purification Panel | Manual Magnesium Sulfur Oxide Purification Panel |
| Thickness | 50mm、75mm、100mm | 50mm、75mm、100mm | 50mm、75mm、100mm | 50mm、75mm、100mm |
| Width | 980mm、1180mm、20mm-1180mm (Customizable) | 980mm、1180mm、20mm-1180mm (Customizable) | 980mm、1180mm、20mm-1180mm (Customizable) | 980mm、1180mm、20mm-1180mm (Customizable) |
| Length | Customizable， Regular≤6000mm | Customizable， Regular≤6000mm | Customizable， Regular≤6000mm | Customizable， Regular≤6000mm |
| Plane materiel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel | 0.4mm-0.8mm colour coated steel sheet、stainless steel panel、Aluminum alloy panel |
| Rockwool | A level fireproof， Good thermal insulation performance, It can be installed as male and female slots | \ | \ | \ |
| Core materials | \ | Single-sided or double-sided glass magnesium rock wool | 0.1mm Hexagonal honeycomb made of aluminum foil | Hollow magnesium sulfur oxide panel |
| Galvanizing keel | ≥0.6mm | ≥0.6mm | ≥0.6mm | ≥0.6mm |
| Feature | A level fireproof, Fire Resistance Limit≥1h, High intensity, It is suitable for food and medicine workshops with high cleanliness requirements and ceilings | A level fireproof, Fire Resistance Limit≥1h, High intensity, It is suitable for food and medicine workshops with high cleanliness requirements and ceilings | Light texture, high strength, excellent sound insulation | Light texture, high strength, excellent sound insulation |
| Model |  |  |  |  |
