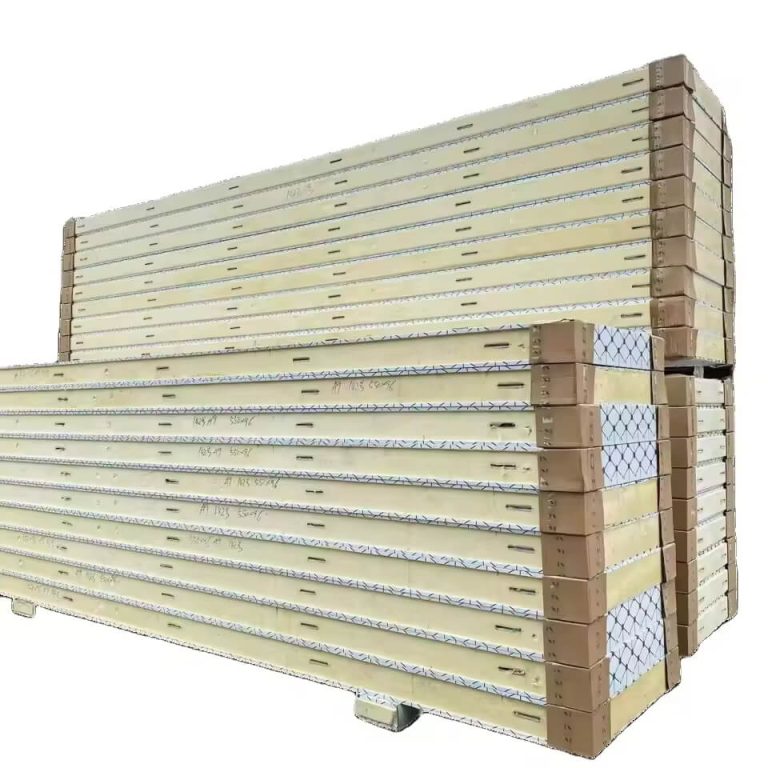

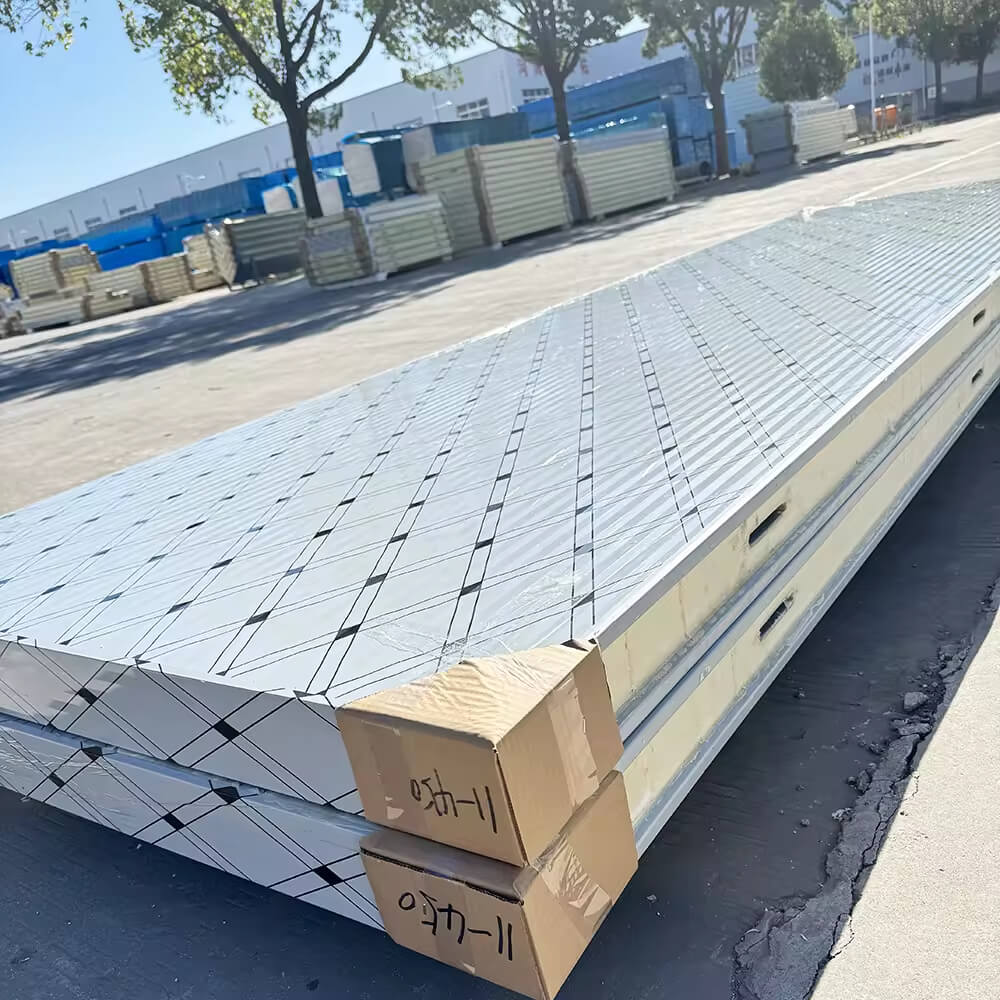

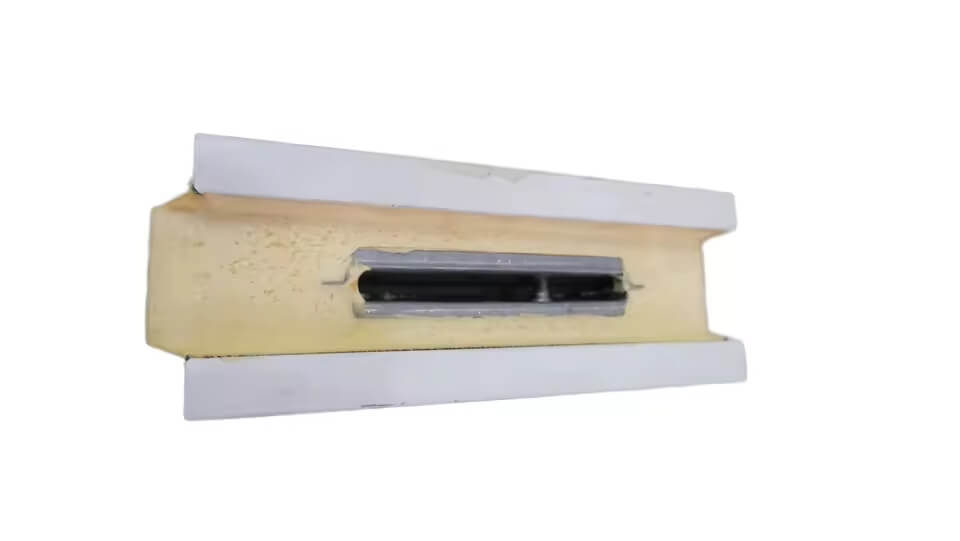

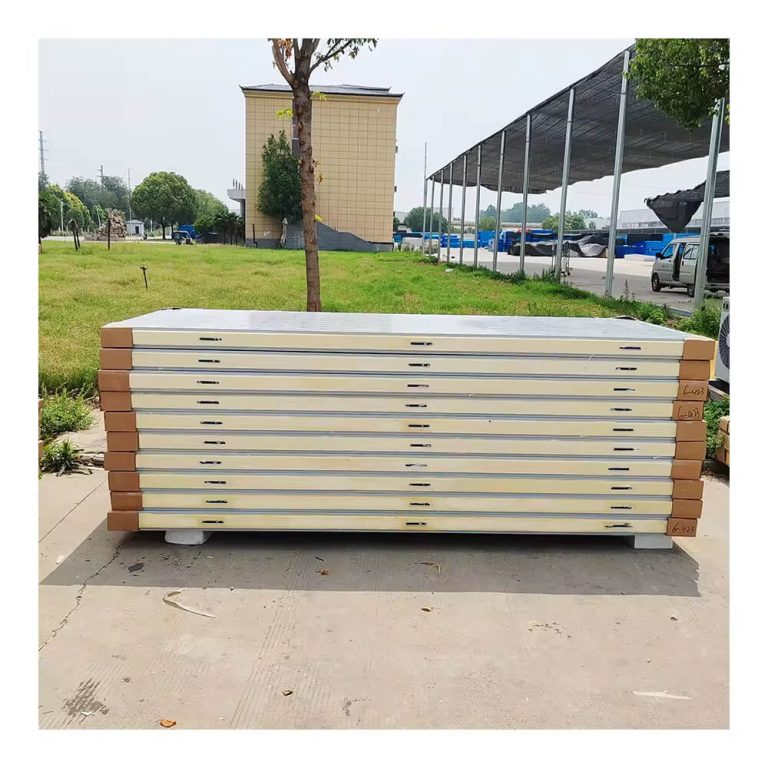

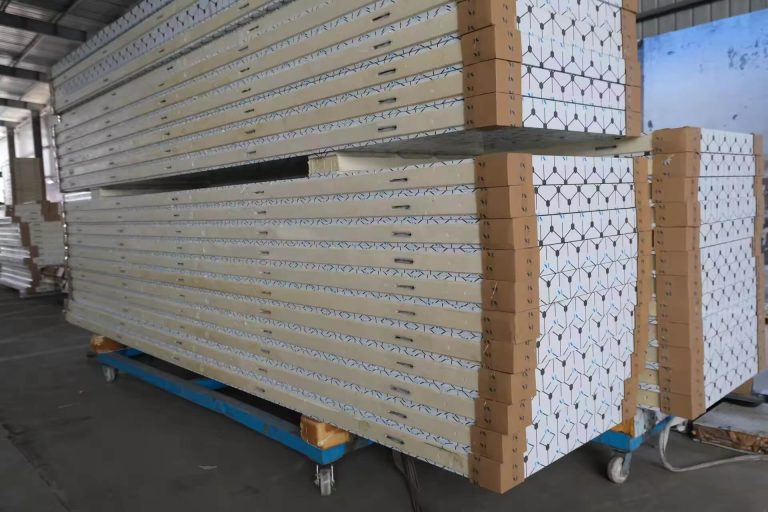

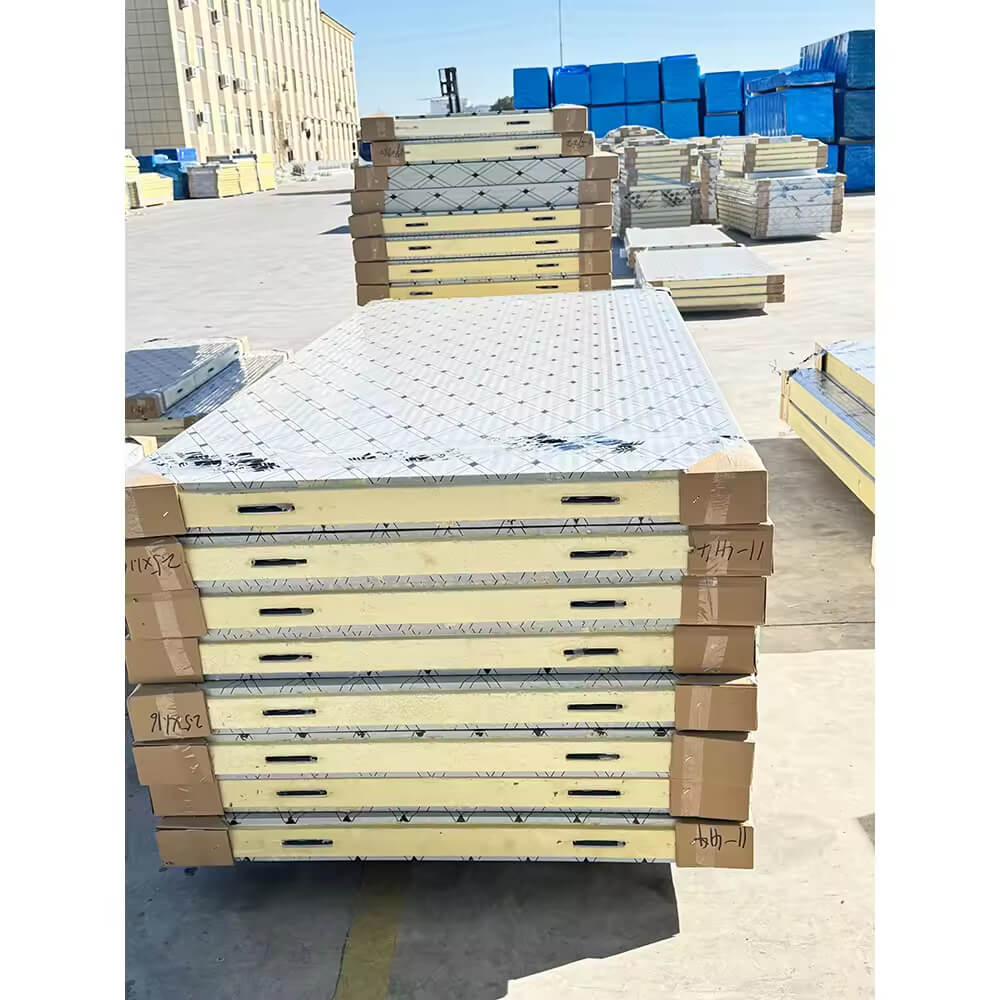

Cam Lock cold storage panels employ a tongue-and-groove + pin-and-hook design. Each panel is assembled and secured via pre-installed metal locking mechanisms, facilitating straightforward installation. Connection is achieved by simply rotating a wrench to secure the panels during assembly, significantly reducing construction timelines.
Product Features
Facing: Typically galvanised steel or color-coated steel, optionally finished with a PVDF coating for enhanced corrosion resistance.Core: Primarily polyurethane (PU), offering low thermal conductivity and superior insulation properties.
Rapid Installation
High Flexibility
Simple Maintenance
Superior Thermal Insulation
Superior fire resistance
Product Series
About PUR
PUR production line in terms of the ratio of raw materials and process output, by six copies of the online world advanced automatic operation (SIEMNS) mixed casting technology, for the first time in China to realize multi-component online continuous foaming success. Can complete the online mixing process, and can adjust the formula freely according to the environmental conditions, and mixing devices, the raw materials are mixed more evenly, the foam is more delicate, so as to produce out of the ordinary high strength, excellent thermal insulation cold panel.
About PIR
Poly isocyanuric acid ester (Polyisocyanurate), PIR, PIR cold panel manufacturing process is developed by isocyanate by adding excess isocyanate index, introduction of ring structure and higher compounds, the formation of more dense cross-linked polyisocyanurate(PIR), from the internal hard foam is more stable, can use time placed up to 160
Cam Lock cold storage panels are ideally suited for small to medium-sized projects, such as:
Laboratory and research institutions’ cryogenic storage facilities
Supermarket and catering industry refrigeration/freezing facilities
Small-scale food processing workshops
Hospital pharmaceutical cold rooms and blood storage facilities
Production Features
The unique corona treatment, enhances degree
Micro atomization online
Special stainless steel panel continuous forming technology
Constant temperature air drying system
Our Partners
Parameters
Specification(mm)
Standard Panel With
1000
Pane Length
2000≤L≤30000
Standard Panel Thickness
25
Steel Sheet Thickness(mm)
Outer Steel Sheet
0.5-0.8
Inner Steel Sheet
0.4-0.5
Steel Sheet Coating
PVDF/ hi Resistant PE /Silicon Modified PE/PE(Coating Thickness≥20
Core Material
PUR(polyurethane)
PIR(polyisocyanurate)
Fire Rating
B2
B1
Core Average Density(kg/m³)
≥40
Core Heat Conduct Index(W/m.k)
0.022
Node Installation
Overlap joint of wallboard roof
Applications
Tseason has its own IBIM(Building Information Modeling) Objects, which can provide a crucial and even mandated process to ensure highly efficient and collaborative building planning, design, and construction.
