What Is R Panel Roofing? Definition, Alternatives, Cost, and Colors Explained

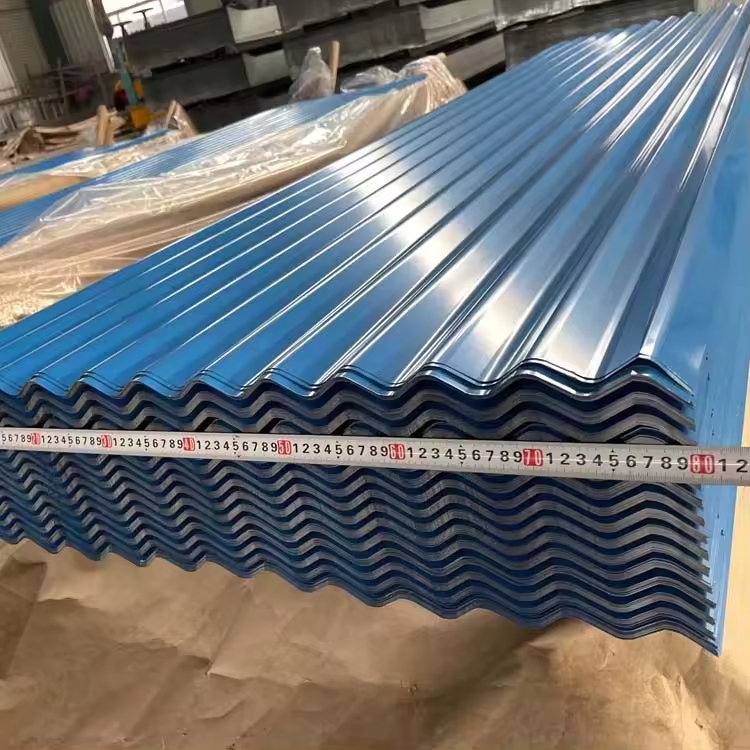

1. What Is an R Panel Roof?
In today’s construction industry, metal roofing systems are widely used in factories, warehouses, agricultural facilities, and prefabricated buildings.
Among them, R Panel Roofing stands out for its high strength, low cost, and fast installation, making it one of the most popular choices worldwide.

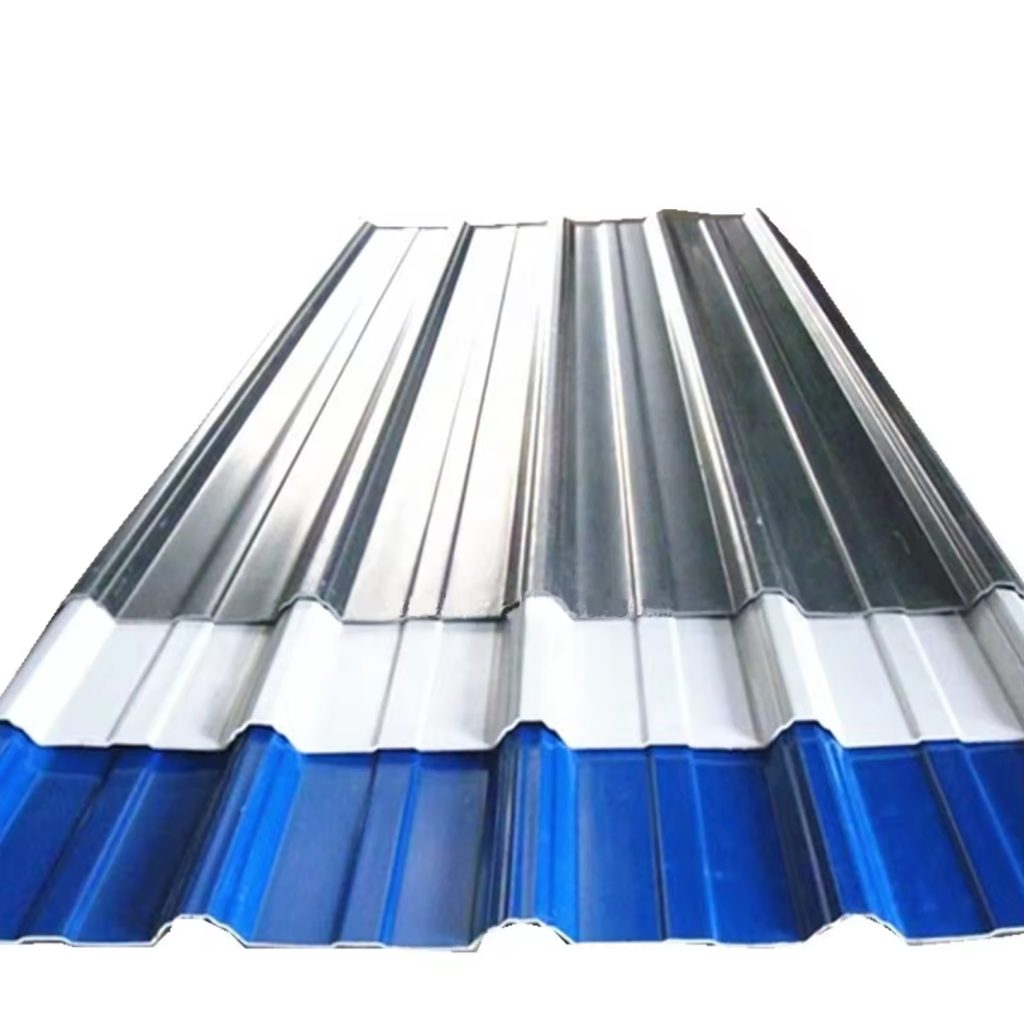

An R Panel roof is a type of exposed fastener metal roof and wall system.
Each panel typically measures 36 inches wide with a rib height of 1.25 inches, designed for both roofing and siding applications.
R Panels are manufactured from 24–26 gauge galvanized steel or aluminum sheets, finished with high-performance color coatings such as PVDF or HDP. These coatings deliver excellent corrosion resistance, UV protection, and weather durability.
Compared with hidden fastener systems (like standing seam roofs), the R Panel system features a simpler structure, better material efficiency, and lower installation cost — ideal for commercial, agricultural, and industrial buildings.
2. Key Features and Advantages of R Panel Roofing
R Panels offer a perfect balance of strength, aesthetics, and cost efficiency. Below are the major benefits of choosing an R Panel roofing system:
1. Structural Strength
- Reinforced rib design enhances rigidity and allows for spans of up to 5 feet.
- Performs well on low-slope roofs (as low as 1:12).
- Suitable for various steel structure and frame buildings.
2. Fast Installation and Labor Savings
- Exposed screw fastening system simplifies installation.
- Can be installed directly over purlins or solid decking.
- Panels are available in continuous lengths up to 40 feet, minimizing seams and leaks.
3. Superior Corrosion and Weather Resistance
- Manufactured using high-quality Galvalume steel or PVDF-coated panels.
- Excellent UV, salt spray, and chalking resistance.
- Reliable for use in coastal or high-humidity regions.
4. Clean, Modern Appearance
- Straight lines and metallic textures enhance architectural appeal.
- Available in multiple colors and gloss levels for design flexibility.
- Perfect for warehouses, office buildings, and modular constructions.
5. Cost Efficiency and Low Maintenance
- 30%–50% lower cost than standing seam systems.
- Easy to maintain or replace individual panels.
- Lifespan ranges from 20 to 50 years, depending on coating type.
3. R Panel vs. PBR Panel: What’s the Difference?
Although R Panels and PBR Panels look similar, there’s a key structural difference that affects their performance.
1. Design Difference
The PBR Panel includes a Purlin Bearing Leg (PBL) — a small edge extension that rests on purlins and provides extra strength at the lap joint.
The R Panel does not have this extension, making it lighter and more economical.
| Feature | R Panel | PBR Panel |
|---|---|---|
| Rib Height | 1.25" | 1.25" + Bearing Leg |
| Strength | Medium | Higher |
| Water Resistance | Moderate | Excellent |
| Installation Speed | Faster | Slightly Slower |
| Typical Use | Walls, light roofs | Long-span roofing |
✅ Summary:
- For high wind or heavy rain environments → Choose PBR Panels.
- For economical or vertical wall applications → Choose R Panels.
4. R Panel vs. U Panel: Which Is Better?
Both R and U panels use exposed fasteners, but they differ in shape and strength.
- R Panels have alternating rib heights, offering better strength and load capacity.
- U Panels have uniform rib heights, giving a smoother, flatter surface.
| Comparison | R Panel | U Panel |
|---|---|---|
| Rib Design | Alternating rib heights | Even rib height |
| Strength | Higher | Moderate |
| Common Use | Roofs, walls, garages | Commercial walls, cladding |
| Visual Effect | Industrial, strong lines | Smooth, subtle |
Recommendation:
- Choose R Panels for roofs and high-strength walls.
- Choose U Panels for cost-sensitive cladding or decorative walls.
5. Common Applications of R Panel Roofing
Thanks to its durability and versatility, R Panel metal roofing is used across multiple industries:
- Commercial Buildings – warehouses, factories, logistics centers, and shopping complexes.
- Agricultural Structures – barns, poultry houses, grain storage, and machinery sheds.
- Residential & Garages – carports, sheds, and backyard buildings.
- Retrofit Projects – “Retro-R” systems can be installed directly over old metal roofs.
- Decorative Uses – interior wall liners, partitions, and fencing.
6. R Panel Roofing Cost Guide (2025 Update)
R Panel systems remain one of the most affordable metal roofing options globally.
| Material Type | Average Cost (USD/sq.ft) |
|---|---|
| Galvalume / Galvanized Steel | $1.50 – $3.50 |
| Painted Steel (PVDF/HDP) | $2.00 – $4.00 |
| Aluminum | $3.50 – $6.50 |
| Copper / Zinc | $13.00 – $25.00 |
Total Installed Cost:
- R Panel / Corrugated Metal Roof: $7 – $12 per sq.ft
- Standing Seam Roof: $10 – $16 per sq.ft
Cost Factors:
- Panel thickness (gauge) and coating type
- Roof slope and complexity
- Accessories and insulation requirements
Conclusion:
If you’re seeking a high-performance yet affordable roofing system, R Panel remains the best value option for large-scale industrial or agricultural projects.

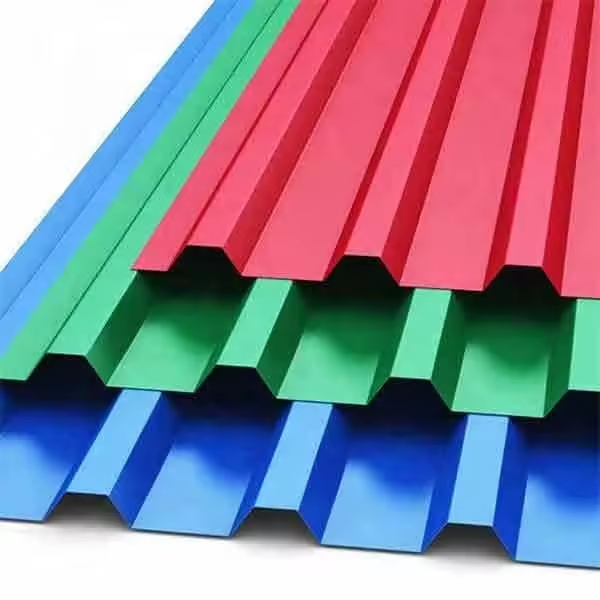

7. R Panel Roofing Colors and Surface Finishes
Aesthetics are increasingly important in modern construction.
Tseason offers a full range of color and surface finishes to complement different architectural designs.
Standard PVDF Colors
- Slate Gray
- Ivory
- Charcoal
- Copper
- Pure White
Coating Options
| Coating Type | Performance | Lifespan |
|---|---|---|
| PVDF | Best UV and chemical resistance | 20–30 years |
| HDP | High durability, cost-effective | 15–20 years |
| PE | Economical, suitable for mild climates | 10–15 years |
Color Suggestions:
- Industrial / Commercial: Gray, Charcoal
- Agricultural: Beige, Green
- Residential: White, Red
8. Alternatives to R Panel Roofing
While R Panels are versatile, other systems may better suit specific project requirements.
| Alternative | Key Advantage | Best Use Case |
|---|---|---|
| PBR Panel | Added rib support for longer spans | High-load roofing |
| Standing Seam | Hidden fasteners, premium aesthetics | Commercial buildings |
| Corrugated Panel | Traditional, cost-efficient | Agricultural projects |
| Tseason Sandwich Panel | Integrated insulation & fireproofing | Cold rooms, cleanrooms, prefab buildings |
Among these, Tseason’s insulated sandwich panels (PIR, PU, or Rockwool core) are the high-performance upgrade to conventional R Panels — providing superior thermal insulation, fire resistance, and installation efficiency.
9. Why Choose Tseason for Your Metal Roofing and Wall Systems
Tseason is a globally recognized manufacturer specializing in metal energy-saving enclosure systems.
The company integrates R Panel production, sandwich panels, modular houses, and photovoltaic roof systems under one advanced facility.
Tseason Advantages
✅ Premium Materials – Uses top-brand steel from Baosteel and BlueScope.
✅ Advanced Equipment – German PUMA and OMS automated production lines.
✅ Diverse Solutions – R Panel, PBR Panel, PU/PIR insulated panels, solar-integrated roofing.
✅ High Quality – Strong weather resistance, precision cutting, zero cold bridge design.
✅ High Capacity – Daily output up to 10,000 m².
✅ Global Reach – Exported to 60+ countries, trusted by leading contractors.
Whether your project requires durable exposed fastener panels or energy-efficient insulated panels, Tseason delivers tailor-made solutions that balance performance, cost, and appearance.
10. Conclusion: Choosing the Right Roofing System for Your Project
R Panel roofing remains one of the world’s most reliable, economical, and easy-to-install metal roof options.
Its simple structure, high durability, and long lifespan make it ideal for warehouses, workshops, and agricultural buildings.
However, energy efficiency and fire safety are becoming equally critical as building performance standards evolve.
For this reason, many engineers and contractors are now choosing Tseason’s insulated sandwich panels — an advanced alternative that combines strength, insulation, and aesthetics in one system.
