rock wool sandwich panel

Henan Tseason Panel Co., Ltd.

Tseason Soundproof Sandwich Panel

Standard Panel Width:

360mm

Pane Length:

1.5-10m

Standard Panel Thickness:

30mm

Get Quote

View Detail 

Tseason Mineral Wool Panels

Standard Panel Width:

360mm

Pane Length:

1.5-10m

Standard Panel Thickness:

30mm

Get Quote

View Detail 

Metal Insulated Sandwich Panel

Standard Panel Width:

360mm

Pane Length:

1.5-10m

Standard Panel Thickness:

30mm

Get Quote

View Detail 

Tseason Insulated Metal Roof Panels

Standard Panel Width:

1000

Pane Length:

2000≤L≤15000

Standard Panel Thickness:

Get Quote

View Detail 

Why Choose Tseason Rock Wool Sandwich Panels

Features Class A1 fire resistance, verified by SGS testing, with a fire resistance duration of up to 106 minutes

Made with high-density hydrophobic rock wool (hydrophobicity ≥98%), offering excellent water resistance

Provides a durable bond strength of at least 0.06 MPa. The Tseason rock wool sandwich panel production line uses a two-component polyurethane adhesive and is manufactured via a fully automated PUMA continuous production line, ensuring product consistency.

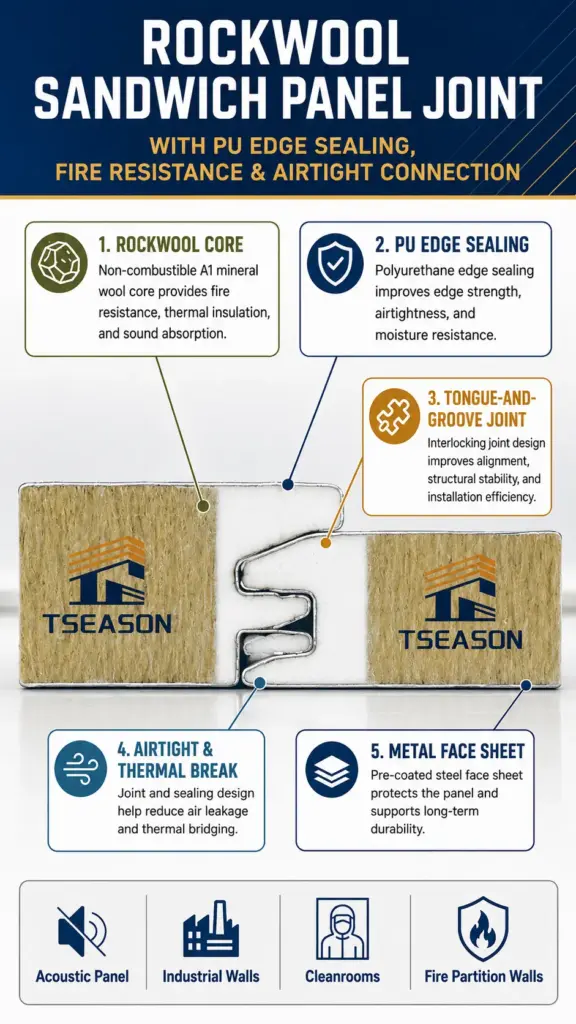

The rock wool sandwich panels feature a tongue-and-groove joint structure, combined with fully automated continuous integral foaming and a double-rebated seam-locking process. Joint gap precision is controlled within 0.3–0.5 millimeters, with an overall dimensional deviation of no more than 1 millimeter per square meter. This high assembly precision directly increases on-site installation efficiency by 40% and reduces installation costs.
Concealed-nail interlocking , utilizes concealed-nail clamping plates and hidden self-tapping screws for installation. Combined with specially designed waterproof screw caps, this system prevents rain leakage and joint rust, ensuring an aesthetically pleasing wall finish.

- Featuring vertically oriented rock wool fibers and a high-strength metal finish, these panels can withstand high wind pressures and are suitable for large-span projects. Galvanized steel substrate (galvanized coating ≥ 120 g/m²) with a choice of PVDF, HDP, or SMP coatings to enhance corrosion resistance, making it ideal for harsh environments.

- Patented PU edge sealing technology (edge thickness ≥ 10 mm) reduces thermal bridging, lowering energy costs by up to 25% compared to standard rock wool panels.

- Thickness is fully customizable between 50 mm and 200 mm, with flexible options for panel width (1000–1200 mm), core density, coating type, and metal finish options.

Need the Right Rock Wool Sandwich Panel for Your Project?

Rock Wool Sandwich Panel Specifications

The following specifications apply to our standard rock wool sandwich panels:

Parameter	Roof Panel	Wall Panel
Thickness	50 / 75 / 100 / 120 / 150 / 200 mm	50 / 75 / 100 / 120 / 150 / 200 mm
Core Density	100 kg/m³ (standard) / 120 kg/m³ (high-load)	100 kg/m³ (standard) / 120 kg/m³ (high-load)
Metal Facing	0.5–0.8mm (outer) / 0.4–0.5mm (inner)	0.5–0.8mm (outer) / 0.4–0.5mm (inner)
Effective Width	1000mm	1000mm / 1150mm
Thermal Conductivity (λ)	≤ 0.043 W/m·K	≤ 0.043 W/m·K
Fire Classification	Class A1 (EN 13501-1)	Class A1 (EN 13501-1)
Fire Resistance	106 min (SGS-tested, Report No. AJHG1510009477FB)	106 min (SGS-tested)
Sound Insulation (Rw)	32–35 dB	32–35 dB
Hydrophobic Rate	≥ 98%	≥ 98%
Bonding Strength	≥ 0.06 MPa	≥ 0.06 MPa
Coating Options	PE / HDP / SMP / PVDF	PE / HDP / SMP / PVDF
Joint System	Overlap + butyl tape	Tongue & groove / hidden screw

Standard wall panels typically use 100 kg/m³ density for balanced performance. Roof panels and high-load applications recommend 120 kg/m³ for enhanced structural integrity. Higher density improves both fire resistance and acoustic performance.Tseason rock wool sandwich panels meet international certification standards including EN 14509 (CE), ASTM E84 (Class A), FM 4880/4881 (FM Approved), GOST 30402-96, and GB 8624. SGS and Intertek test reports are available upon request.

Difference between sandwich panel materials Core

There is no single sandwich panel core that is best for every project. Rock wool, PIR/PU, EPS and glass fiber panels solve different problems. The right choice depends on the building application, fire-safety requirement, insulation priority, acoustic needs, humidity exposure, budget and installation conditions.

PIR / PU Sandwich Panel

PU PUF(Polyurethane Foam) Sandwich Panel is applied evenly through the foaming agent formula to color steel, forming an excellent three-layer fire prevention board.
New lightweight building materials, color steel, and polyurethane combination, the main fire-retardant and high-temperature resistance, self-extinguishing after adding fire retardant.
The softening point is more than 250℃ and decomposed under high temperatures. When burning, the surface accumulates carbon, isolates the foam, and fire spreads.

Rock Wool Sandwich Panel

Rock Wool Sandwich Panel has low density, reducing the dead weight of the building and improving safety.
With an excellent sound insulation effect, it is the ideal sound-absorbing and soundproof material.
High fire performance, non-combustible, and does not release harmful gases to protect the safety of life and property.

Glass Fiber Sandwich Panel

Glass Fiber Sandwich Panel is energy-saving and environmentally friendly, with no formaldehyde and a wind pressure prevention design to enhance stability. It has low cost and high efficiency, diverse forms, and is beautiful, with no cold bridge. Class A flame retardant, suitable for high fireplaces; connection-fireplaces design, optimizes heat preservation and insulation. Features include thermal insulation, fire prevention, sound absorption, vibration damping, flexible construction, moisture-proof and durability, and suitable for many buildings

EPS Sandwich Panel

EPS Sandwich Panel is the abbreviation of exploitable polystyrene board. Apolystyrene foam sheet with a closed cell structure is prepared by heating the exploitable polystyrene beads in a mold after pre-foaming with heating.

Not Sure Which Thickness, Facing, or Coating to Use?

Share your operating temperature, project location, hygiene requirements, and building application. Tseason will help review the panel thickness, metal facing, coating, and joint structure

See The Real Prefomace of Tseason Rock Wool Sandwich Panel

Why Rock Wool Is a High-Value Core for Demanding Buildings

Rock Wool Core for Safer Building Envelopes

Tseason rock wool sandwich panels are made of metal facings and a rock wool core; the internal rock wool meets the highest A1 non-combustible rating under the European Union’s EN 13501-1 standard. Depending on the panel thickness, the fire resistance rating of the wall can range from 30 minutes to 4 hours. In addition to its excellent fire resistance rating, the thermal conductivity (λ ≤ 0.045 W/m・K) meets the energy-saving requirements of factories, helping to reduce energy loss in industrial plants, warehouses, equipment rooms, and public buildings.
Tseason does not merely sell rock wool sandwich panels; rather, we consider the actual application scenarios for project walls and roofs, pair them with the appropriate outdoor weather-resistant coating solutions, and take into account fire resistance ratings and various energy efficiency standards to precisely match customers with a complete panel system that meets all project requirements.

Better Acoustic Comfort for Industrial and Commercial Spaces

Rock wool consists of a porous structure formed by countless fine, interwoven fibers. When sound waves enter these pores, they are reflected and refracted, converting into thermal energy and resulting in energy loss, thereby achieving sound absorption and noise reduction. Tseason rock wool sandwich panels are available in a variety of thicknesses ranging from 50 mm to 150 mm and density combinations from 80 to 120 kg/m³, with STC sound insulation ratings ranging from 40 dB to over 60 dB. Models can be flexibly selected based on the intensity of the noise source.
Tseason rock wool sandwich panels combine fire resistance with a fire resistance rating exceeding 1,000°C and significant sound insulation performance, making them particularly suitable for the following applications:

Machine shops and stamping workshops: 50–75 mm / 80–100 kg/m³ specifications, STC 40–45 dB, to reduce equipment operating noise
Logistics warehouses and production workshop partitions: 100 mm / 100–120 kg/m³ specifications, STC 50–55 dB, meeting sound insulation requirements for personnel work areas
Machine rooms and recording studio-grade soundproof spaces: High-density core material of 100 mm or more, STC 60 dB or higher, suitable for electromechanical equipment rooms with stringent sound insulation requirements

Application & Solutions

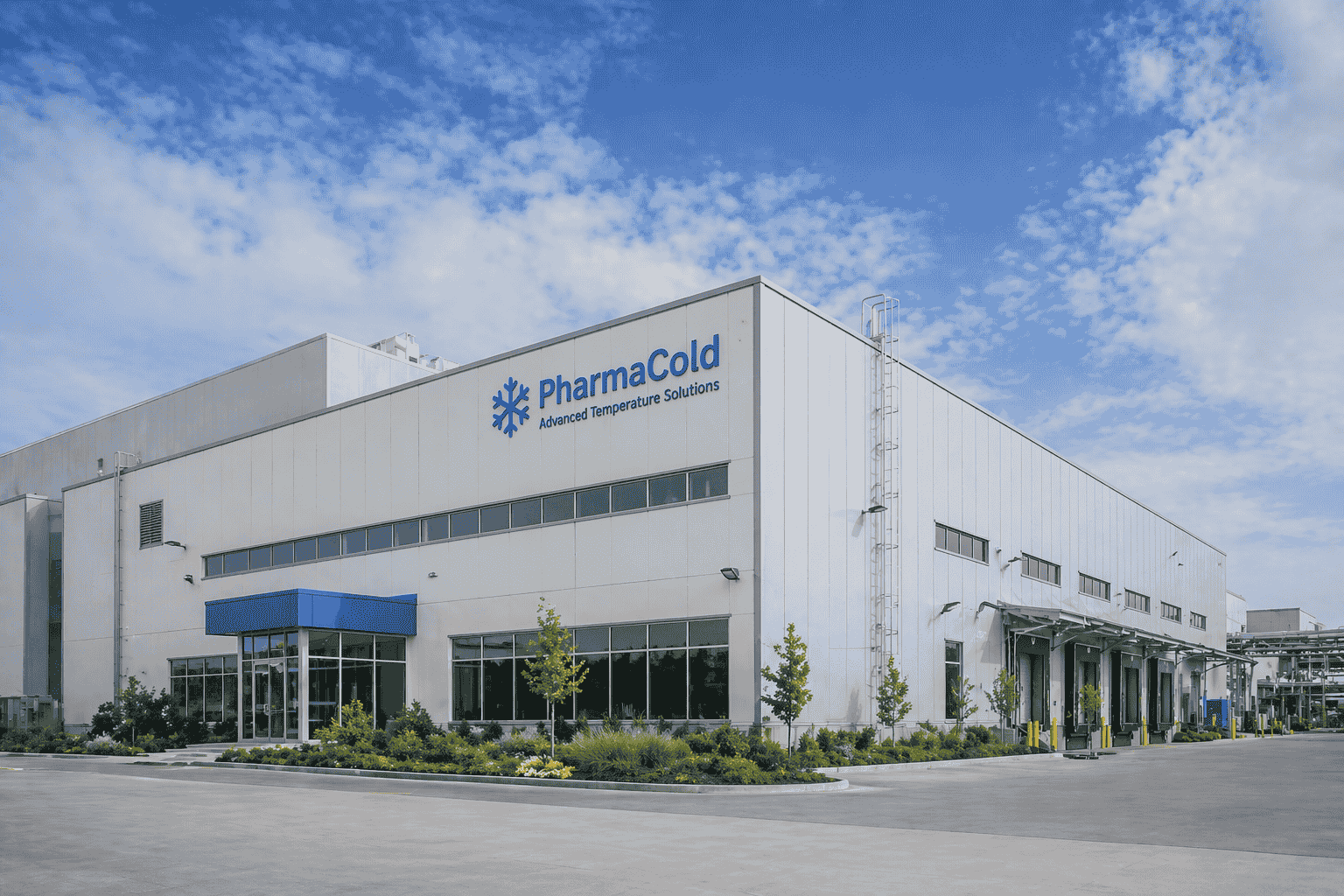

Industrial and Warehouse Building Envelopes

For factories, steel-structure workshops, warehouses and logistics buildings, rock wool sandwich panels are commonly used as exterior wall cladding and roofing panels. These projects usually need large-area installation, stable panel supply and clear matching with steel frames, purlins, roof slopes and facade drawings. Buyers should confirm panel length, cover width, coating type, steel thickness and installation details before quotation so the wall and roof system can fit the project design instead of being treated as a generic panel purchase.

Public and Commercial Buildings

Public and commercial buildings such as schools, hospitals, exhibition centers, stations, shopping centers and office facilities often require wall systems that combine appearance, insulation, acoustic comfort and fire-safety consideration. In this scenario, rock wool sandwich panels are not only evaluated as insulation material, but also as part of the exterior facade or interior wall system. The purchasing focus should include surface finish, hidden fixing or facade appearance, coating durability, document availability and whether the panel system can support the building’s long-term maintenance requirements.

Cleanrooms and Controlled Production Areas

Cleanrooms and controlled production areas require enclosure panels that support hygiene control, stable interior conditions and reliable joint treatment. Rock wool panels may be reviewed when a project needs mineral wool insulation together with cleanroom wall system planning, coating selection and documentation review. This application is more suitable for pharmaceutical, electronics, food-related or precision manufacturing spaces where the buyer needs both enclosure performance and controlled indoor conditions

Equipment Rooms and Noise-Controlled Spaces

For machinery rooms, power rooms, production lines and other areas with continuous equipment noise, rock wool sandwich panels can be considered as part of an acoustic wall or partition system. The buyer should first define whether the target is sound absorption, sound insulation or general acoustic comfort, because each goal may affect panel thickness, surface design, steel facing and installation method. This direction is especially relevant for industrial buildings where noise control, worker comfort and enclosed equipment zones are part of the project requirement.

Optimize your construction timeline and ROI with our high-strength, lightweight Rock wool sandwich panels, offering modular design for 40% faster installation and direct-from-factory global logistics support.

Tseason Panel,a sandwich panel manufacturer with 30 years production experience, strict quality control, reliable lead time and attentive customer service. With strong capabilities in flexible customization, on-time delivery as well as diversified payment terms, we provide tailored comprehensive solutions for global clients with professionalism and reliability.Our factory is located at Xinxiang City, Henan Province, covering an area of 300,000 square meters. Currently, our company has three production bases in Henan, Sichuan, and Xinjiang, with an annual production capacity of 5 million square meters of various types of energy-saving panels. We have four fully automatic production lines for energy-saving panels, all sourced from the renowned Italian sandwich panel manufacturers OMS and PUMA,featuring precise and high-speed performance to ensure product quality.

Tseason Factory

Processing Workshop

Tseason Panel Factory

Factory Show

We pursues its goal of serving you better

The Company Obtains Iso 9001:2015 Certification

FAQs

Are rock wool sandwich panels a good choice for commercial building insulation

Yes. Rock wool sandwich panels are a strong option for commercial and industrial buildings that need insulation together with fire-safety relevance, acoustic comfort and durable wall or roof enclosure.

Can Tseason rock wool sandwich panels be used for roofing projects?

Yes. Tseason has roof-related rock wool sandwich panel content, but roof use must be reviewed as a complete system, not only as a panel core choice.Roofing projects should confirm panel profile, roof slope, purlin spacing, lap direction, fastening, flashing, waterproof details and accessories. Tseason’s roofing installation content highlights leakage prevention, buckle connection and hidden nail installation, which makes installation details critical for long-term roof performance.

What should buyers check when sourcing fire-resistant sandwich panels for industrial use?

Buyers should check whether the fire-related document matches the exact panel structure, including core material, thickness, steel facing and joint details.Tseason’s sandwich panel buying guide points out that many disputes come from certificate mismatch, misleading thermal data, steel thickness discrepancy and inconsistent batch documents. For industrial rock wool sandwich panels, the quotation, TDS, tested product structure and project drawings should be cross-checked before production or shipment.

How do I choose sandwich panels for soundproofing a warehouse or factory?

For warehouse or factory soundproofing, choose panels based on the noise source, wall or partition location, required sound absorption or sound insulation goal, and installation details.You can check our rock wool soundproof sandwich panel.

How should buyers source outdoor sandwich panels with UV protection or custom specifications?

Buyers should confirm coating type, color requirement, panel thickness, cover width, steel facing, length range and project environment before requesting outdoor or custom-sized sandwich panels.Tseason’s coating guide discusses PE, SMP and PVDF coating directions for roofing, wall cladding and industrial applications. For outdoor walls, coastal projects or high-exposure roofs, coating durability and installation details matter as much as the core material. Custom specifications should be matched with drawings and application conditions before quotation.

Sandwich Panels Manufacturing Processes

The manufacturing processes for sandwich panels involve precision cutting, bonding, and curing techniques to produce high-quality panels with excellent thermal insulation, strength, and durability.

Corona (pu)

Roll forming

Glue spraying (pu foaming)

Curing

Fully automatic cutting

Fully automatic packing





Why Choose Us

Our facility, equipped with advanced PUMA and OMS production lines, annually produces 5 million square meters of sandwich panels and 3,000 integrated houses, adhering to stringent standards as demonstrated by ISO9001, ISO14001, and OHSAS18001 certifications, along with CE, GOST, and SGS certifications, reinforced by numerous national patents.



High thermal insulation

The thermal insulation of the polyurethane sandwich panel is the highest on the market with a density of 40kg/m3.



Easy to install

As simple as positioning and screwing the panel to the existing structure. And if you need help, we give you a free manual!



Careful esthetic

We take care of every detail in the manufacture of the panel with continuous quality controls throughout the process until shipment.



Guaranteed quality

All our panels offer maximum quality and durability for decades.

Customized Sandwich Panels

customized sandwich panels offer a flexible and tailored solution for specific project requirements, providing a wide range of design possibilities and performance capabilities.



Material Customisation

Customers provide drawings to determine the product model and product parameters



Customized Drawings/Samples

After determining the parameters, provide relevant product samples for customers to confirm.



Manufacturing Processes

After confirmation, the factory will produce products that meet the standards required by the customer.



Packaging Custom

Securely packaged and shipped to customers by sea or road.

Application Area Customized Excellent Solutions

Aluminum profiles can be used to make various types of doors and windows, including: Sliding doors and windows, Casement windows, Bi-fold doors and windows, Shopfronts.
